Description
|
|
||||

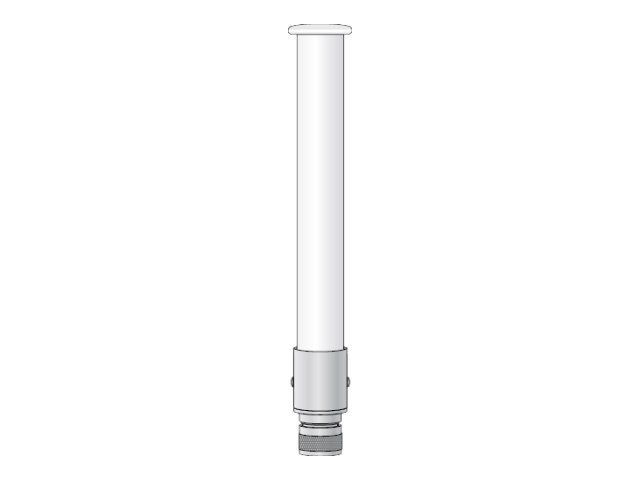

| Cisco Aironet Dual Band Omni Antenna |
|
|||
| Antenna – 7 dBi (for 5 GHz) – 4 dBi (for 2.4 GHz) – omni-directional – outdoor | ||||
| Group | Antennas | |||
| Производител | Cisco | |||
| Код на производителя | AIR-ANT2547V-N= | |||
| EAN/UPC | 0882658410789 | |||
| Description | ||||
|
As this access point takes greater advantage of the multiple-input multiple-output (MIMO) features supported under the 802.11n standard, the number of radio transceivers per frequency band has increased. Using dual-band antenna port allows the access point to support these added transceivers while maintaining a reasonably low number of antenna connections.
|
||||
| Основни характеристики | ||||
| Описание на продукта | Cisco Aironet Dual Band Omni Antenna – antenna | |||
| Product Type | Antenna | |||
| Dimensions (WxDxH) | 3.2 cm x 3.2 cm x 28.2 cm | |||
| Weight | 170 g | |||
| Aerial Placing / Mounting | Outdoor | |||
| Frequency Range | 2.4 – 2.483 GHz, 5 GHz, 5.15 – 5.875 GHz | |||
| Gain | 7 dBi (for 5 GHz), 4 dBi (for 2.4 GHz) | |||
| Directivity | Omni-directional | |||
| Разширено описание и характеристики | ||||
| General | ||||
| Product Type | Antenna | |||
| Width | 3.2 cm | |||
| Depth | 3.2 cm | |||
| Height | 28.2 cm | |||
| Weight | 170 g | |||
| Aerial | ||||
| Aerial Placing / Mounting | Outdoor | |||
| Frequency Range | 2.4 – 2.483 GHz, 5 GHz, 5.15 – 5.875 GHz | |||
| Gain | 7 dBi (for 5 GHz), 4 dBi (for 2.4 GHz) | |||
| Directivity | Omni-directional | |||
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 | |||
| Impedance | 50 Ohm | |||
| Cabling & Wiring | ||||
| Connector Provided | 1 x N-Series connector male | |||
| Environmental Parameters | ||||
| Min Operating Temperature | -40 °C | |||
| Max Operating Temperature | 85 °C | |||
| Техническото описание е възможно да не съвсем пълно или точно. Ако имате въпроси – пишете ни. | ||||
