Description
|
|
||||
| Cisco ASR 1001 VPN Bundle – Router |
|
|||
| rack-mountable – with Cisco ASR 1000 Series Embedded Services Processor – 2.5Gbps | ||||
| Group | Network Equipment | |||
| Производител | Cisco | |||
| Код на производителя | ASR1001-2.5G-VPNK9 | |||
| EAN/UPC | 0882658440632 | |||
| Description | ||||
|

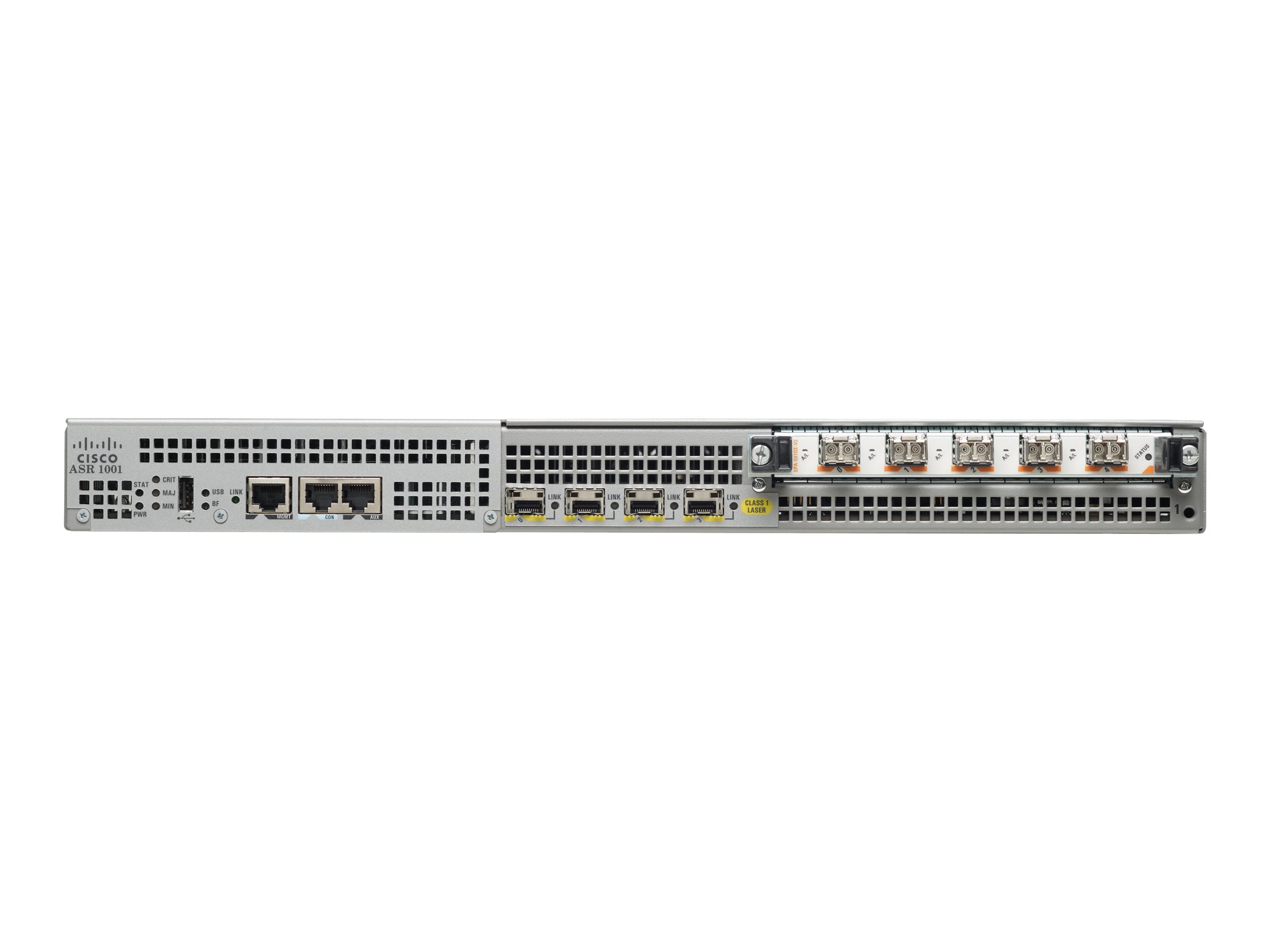

Get embedded services for enterprise and service provider networks in a small form factor of 1-rack unit (RU). The Cisco ASR 1001 Router offers a default system bandwidth of 2.5 Gbps. It houses one shared port adapter (SPA) slot that supports single-height SPAs. It includes four built-in Gigabit Ethernet ports.
|
||||
| Основни характеристики | ||||
| Описание на продукта | Cisco ASR 1001 VPN Bundle – router – rack-mountable – with Cisco ASR 1000 Series Embedded Services Processor, 2.5Gbps | |||
| Вид устройство | Router – with Cisco ASR 1000 Series Embedded Services Processor, 2.5Gbps | |||
| Размер за монтиране | Rack-mountable – modular – 1U | |||
| Performance | Bandwidth: 2.5 Gbps ¦ VPN throughput (IPSec): 1.8 Gbps | |||
| Network / Transport Protocol | IPSec | |||
| Features | Firewall protection, NAT support, VPN support, Intrusion Prevention System (IPS), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) | |||
| Dimensions (WxDxH) | 43.9 cm x 47 cm x 4.3 cm | |||
| Weight | 10.6 kg | |||
| Разширено описание и характеристики | ||||
| General | ||||
| Вид устройство | Router – with Cisco ASR 1000 Series Embedded Services Processor, 2.5Gbps | |||
| Размер за монтиране | Rack-mountable – modular – 1U | |||
| Connectivity Technology | Wired | |||
| Performance | Bandwidth: 2.5 Gbps ¦ VPN throughput (IPSec): 1.8 Gbps | |||
| Network / Transport Protocol | IPSec | |||
| Encryption Algorithm | Triple DES, AES | |||
| Features | Firewall protection, NAT support, VPN support, Intrusion Prevention System (IPS), Access Control List (ACL) support, Quality of Service (QoS), Dynamic Multipoint VPN (DMVPN) | |||
| Compliant Standards | CISPR 24, EN55022, VCCI Class A ITE, EN55024, CISPR 22, EN50082-1, CSA 22.2 No. 60950, EN 61000-6-1, AS/NZS 60950-1, AS/NZ 3548 Class A, ICES-003 Class A, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, EN 300 386 | |||
| RAM | 4 GB (installed) / 16 GB (max) | |||
| Expansion / Connectivity | ||||
| Interfaces | Management: 1 x 10Base-T/100Base-TX – RJ-45 ¦ Management: 1 x console – RJ-45 ¦ Management: 1 x auxiliary – RJ-45 ¦ USB: 1 x ¦ 4 x SFP (mini-GBIC) | |||
| Expansion Slots | 1 (total) / 0 (free) x expansion slot | |||
| Power | ||||
| Power Device | Internal power supply | |||
| Power Redundancy | Yes | |||
| Installed Qty | 2 (installed) / 2 (max) | |||
| Software / System Requirements | ||||
| OS Provided | Cisco IOS Advanced Enterprise Services | |||
| Dimensions & Weight | ||||
| Width | 43.9 cm | |||
| Depth | 47 cm | |||
| Height | 4.3 cm | |||
| Weight | 10.6 kg | |||
| Environmental Parameters | ||||
| Min Operating Temperature | 5 °C | |||
| Max Operating Temperature | 40 °C | |||
| Humidity Range Operating | 10 – 85% | |||
| Техническото описание е възможно да не съвсем пълно или точно. Ако имате въпроси – пишете ни. | ||||
