Description
|
|
||||

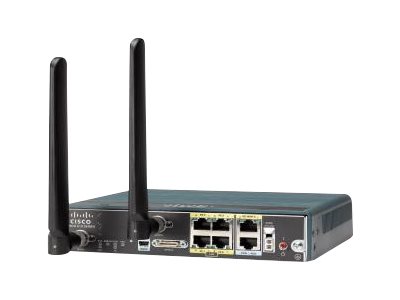

| Cisco ISR G2 819HG-U – Router |
|
|||
| WWAN – 4-port switch – GigE | ||||
| Group | Network Equipment | |||
| Производител | Cisco | |||
| Код на производителя | C819HG-U-K9 | |||
| EAN/UPC | 0882658434266 | |||
| Description | ||||
|
The Cisco 819 Integrated Services Router, part of the Cisco Integrated Services Routers Generation 2 (ISR G2) family designed in compact non-hardened form factor, is a small router with support for integrated third-generation (3G) Wireless WAN (mobile broadband backhaul). The Cisco 819 ISR machine to machine gateway provides a rapidly deployable, highly available, reliable, and secure solution into machine-to-machine applications for financial, telemetry, utility, retail, industrial automation, and transportation with comprehensive management capability.
|
||||
| Основни характеристики | ||||
| Описание на продукта | Cisco ISR G2 819HG-U – router – WWAN – desktop | |||
| Вид устройство | Router – wireless cellular modem – 4-port switch (integrated) | |||
| Размер за монтиране | Desktop – modular | |||
| Mobile Communication Protocol | GPRS, UMTS, EDGE, HSDPA, HSPA | |||
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet | |||
| Capacity | Connection / user qty: 20 | |||
| Network / Transport Protocol | L2TP, IPSec, DHCP, L2TPv3, DDNS | |||
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, NHRP, static IP routing, IGMPv3, GRE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD) | |||
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, SSH, CLI | |||
| Features | Firewall protection, VPN support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, IPv6 support, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, DHCP relay, DHCP client | |||
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x | |||
| Power | AC 120/230 V (50/60 Hz) | |||
| Dimensions (WxDxH) | 19.6 cm x 20.6 cm x 4.4 cm | |||
| Weight | 1.5 kg | |||
| Разширено описание и характеристики | ||||
| General | ||||
| Вид устройство | Router – 4-port switch (integrated) | |||
| Размер за монтиране | Desktop – modular | |||
| Connectivity Technology | Wireless, wired | |||
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet | |||
| Capacity | Connection / user qty: 20 | |||
| Network / Transport Protocol | L2TP, IPSec, DHCP, L2TPv3, DDNS | |||
| Routing Protocol | OSPF, IS-IS, RIP-1, RIP-2, BGP, EIGRP, HSRP, DVMRP, VRRP, NHRP, static IP routing, IGMPv3, GRE, static IPv4 routing, static IPv6 routing, policy-based routing (PBR), WCCP, Bidirectional Forwarding Detection (BFD) | |||
| Remote Management Protocol | SNMP 2, SNMP 3, HTTP, SSH, CLI | |||
| Encryption Algorithm | DES, Triple DES, 128-bit AES, 192-bit AES, 256-bit AES | |||
| Authentication Method | RADIUS, TACACS+ | |||
| Features | Firewall protection, VPN support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, MAC address filtering, IPv6 support, Low-latency queuing (LLQ), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Fair Queuing (WFQ), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), DNS proxy, DHCP relay, DHCP client | |||
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, CISPR 24, EN 61000-3-2, EN55022, ICES-003, IEC 61000-3-3, IEC 61000-4-11, EN55024, CISPR 22, EN 61000-6-1, ANSI/UL No. 1459, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, FCC CFR47 Part 15, IEC 60950-1, UL 60950-1 Second Edition, MIL-STD 810G, BSMI CNS 13438, EN 301 908, VCCI V-3, EN 301 489-7, EN 301 489-1, EN 300 386, CAN/CSA-C22.2 No. 60950-1, EN 301 489-24, EN 301 511 | |||
| RAM | 512 MB (installed) / 512 MB (max) | |||
| Flash Memory | 256 MB (installed) / 256 MB (max) | |||
| Status Indicators | Status, signal strength | |||
| Communications | ||||
| Type | Wireless cellular modem | |||
| Mobile Communication Protocol | GPRS, UMTS, EDGE, HSDPA, HSPA | |||
| Max Transfer Rate | 7.2 Mbps | |||
| Expansion / Connectivity | ||||
| Interfaces | WAN: 1 x 10Base-T/100Base-TX/1000Base-T – RJ-45 ¦ Serial: 1 x console ¦ Management: 1 x console – mini-USB Type B ¦ Serial: 1 x auxiliary – RJ-45 ¦ LAN: 4 x 10Base-T/100Base-TX – RJ-45 | |||
| Expansion Slots | 2 (total) / 2 (free) x SIM | |||
| Aerial | ||||
| Aerial | External detachable | |||
| Antenna Qty | 2 | |||
| Power | ||||
| Power Device | External power adapter | |||
| Voltage Required | AC 120/230 V (50/60 Hz) | |||
| Power Consumption Operational | 11 Watt | |||
| Miscellaneous | ||||
| MTBF | 400,000 hours | |||
| Software / System Requirements | ||||
| OS Provided | Cisco IOS Advanced IP services | |||
| Dimensions & Weight | ||||
| Width | 19.6 cm | |||
| Depth | 20.6 cm | |||
| Height | 4.4 cm | |||
| Weight | 1.5 kg | |||
| Гаранция на производителя, моля прегледайте ганранционните ни условия | ||||
| Service & Support | Limited warranty – advance parts replacement – 1 year – response time: 10 days | |||
| Environmental Parameters | ||||
| Min Operating Temperature | -25 °C | |||
| Max Operating Temperature | 60 °C | |||
| Humidity Range Operating | 0 – 95% (non-condensing) | |||
| Техническото описание е възможно да не съвсем пълно или точно. Ако имате въпроси – пишете ни. | ||||
