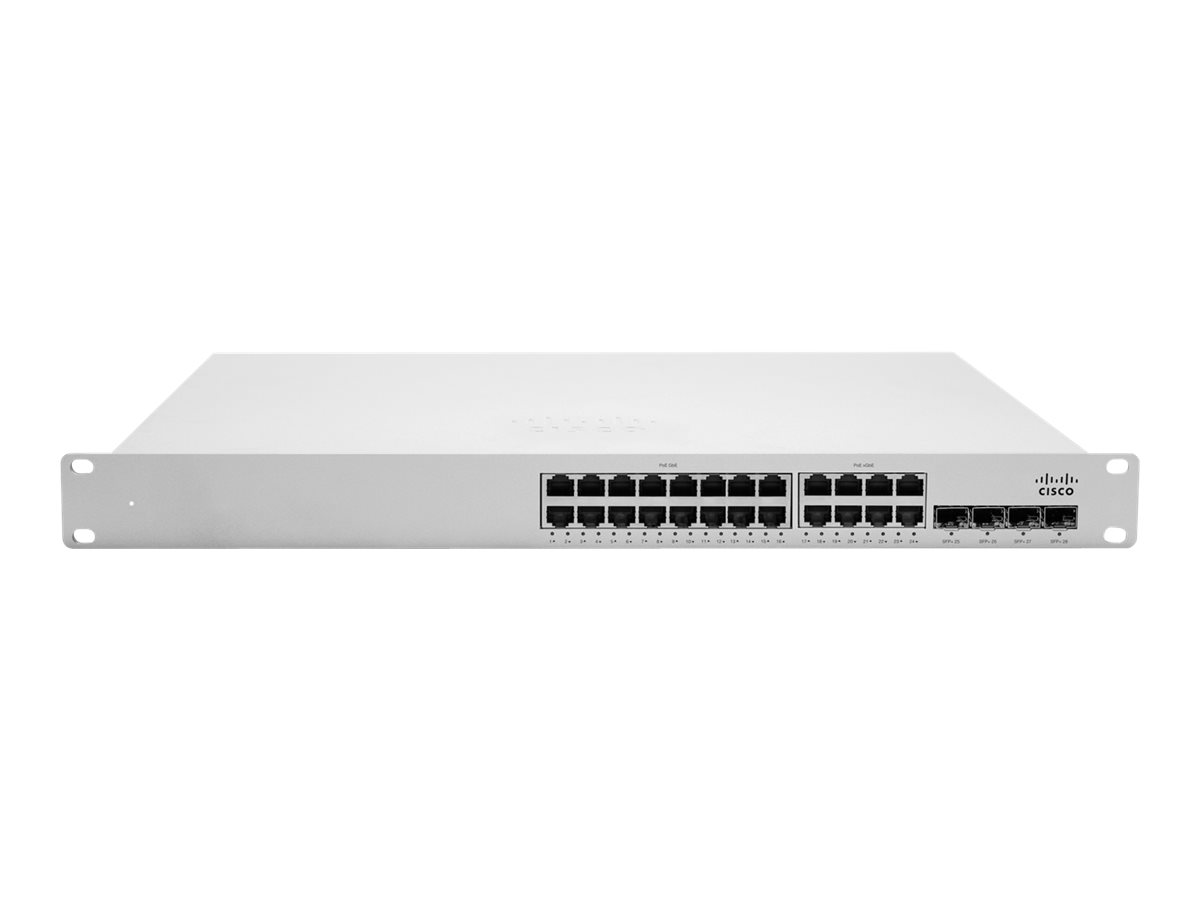

| Cisco Meraki Cloud Managed MS350-24X |
|
|||
| Switch – L3 – Managed – 24 x 10/100/1000 (UPOE) + 4 x 10 Gigabit SFP+ (uplink) – desktop – rack-mountable – UPOE (740 W) | ||||
| Group | Network Equipment | |||
| Производител | Cisco | |||
| Код на производителя | MS350-24X-HW | |||
| Description | ||||
|
The Cisco Meraki MS350-24X is a 24-port cloud-managed stackable L3 enterprise-class access switch with 8 multigigabit ports, four SFP+ uplinks and support for redundant power supplies for mission critical environments. The MS350 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The MS350 family is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.
|
||||
| Основни характеристики | ||||
| Описание на продукта | Cisco Meraki Cloud Managed MS350-24X – switch – 24 ports – Managed – rack-mountable | |||
| Вид устройство | Switch – 24 ports – L3 – Managed – stackable | |||
| Размер за монтиране | Rack-mountable 1U | |||
| Subtype | Gigabit Ethernet | |||
| Ports | 24 x 10/100/1000 (UPOE) + 4 x 10 Gigabit SFP+ (uplink) | |||
| Power Over Ethernet (PoE) | UPOE | |||
| PoE Budget | 740 W | |||
| Performance | Switching capacity: 432 Gbps ¦ Latency: 2.5 µs | |||
| Capacity | Forwarding table entries: 96000 ¦ Tagged VLANs: 4096 | |||
| Jumbo Frame Support | 9600 bytes | |||
| Routing Protocol | OSPFv2, static IP routing | |||
| Remote Management Protocol | SNMP 2c | |||
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, LLDP support, DHCP client, tagged VLAN, crossover detection | |||
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at | |||
| Power | AC 120/230 V (50/60 Hz) | |||
| Power Redundancy | Optional | |||
| Dimensions (WxDxH) | 48.5 cm x 51.6 cm x 4.4 cm | |||
| Weight | 6.57 kg | |||
| Разширено описание и характеристики | ||||
| General | ||||
| Вид устройство | Switch – 24 ports – L3 – Managed – stackable | |||
| Размер за монтиране | Desktop, rack-mountable 1U | |||
| Subtype | Gigabit Ethernet | |||
| Ports | 24 x 10/100/1000 (UPOE) + 4 x 10 Gigabit SFP+ (uplink) | |||
| Power Over Ethernet (PoE) | UPOE | |||
| PoE Budget | 740 W | |||
| Performance | Switching capacity: 432 Gbps ¦ Latency: 2.5 µs | |||
| Capacity | Forwarding table entries: 96000 ¦ Tagged VLANs: 4096 | |||
| Jumbo Frame Support | 9600 bytes | |||
| Max Units In A Stack | 8 | |||
| Routing Protocol | OSPFv2, static IP routing | |||
| Remote Management Protocol | SNMP 2c | |||
| Authentication Method | RADIUS | |||
| Features | Auto-negotiation, auto-uplink (auto MDI/MDI-X), IGMP snooping, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Access Control List (ACL) support, Quality of Service (QoS), SMS alert, LLDP support, DHCP client, tagged VLAN, crossover detection | |||
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at | |||
| Expansion / Connectivity | ||||
| Interfaces | 24 x 1000Base-T RJ-45 UPOE ¦ 4 x 10Gbit LAN SFP+ uplink | |||
| Power | ||||
| Power Device | Internal power supply – hot-plug | |||
| Installed Qty | 1 (installed) / 2 (max) | |||
| Power Redundancy | Optional | |||
| Power Redundancy Scheme | 1+1 (with optional power supply) | |||
| Power Provided | 1025 Watt | |||
| Voltage Required | AC 120/230 V (50/60 Hz) | |||
| Power Consumption Operational | 885 Watt | |||
| Miscellaneous | ||||
| Rack Mounting Kit | Included | |||
| MTBF | 321,515 hours | |||
| Compliant Standards | CSA, C-Tick, IC, RoHS | |||
| Dimensions & Weight | ||||
| Width | 48.5 cm | |||
| Depth | 51.6 cm | |||
| Height | 4.4 cm | |||
| Weight | 6.57 kg | |||
| Гаранция на производителя, моля прегледайте ганранционните ни условия | ||||
| Service & Support | Limited warranty – replacement – lifetime – response time: next day | |||
| Environmental Parameters | ||||
| Min Operating Temperature | 0 °C | |||
| Max Operating Temperature | 45 °C | |||
| Humidity Range Operating | 5 – 95% (non-condensing) | |||
| Техническото описание е възможно да не съвсем пълно или точно. Ако имате въпроси – пишете ни. | ||||
