Description
|
|
||||

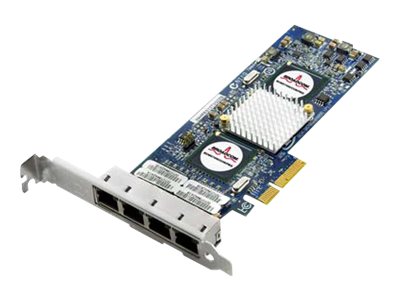

| Cisco Broadcom NetXtreme II 5709 – Network adapter |
|
|||
| PCIe x4 low profile – Gigabit Ethernet x 4 – for UCS C220 M3 – C240 M3 | ||||
| Group | Cables & Adapters | |||
| Производител | Cisco | |||
| Код на производителя | N2XX-ABPCI03-M3 | |||
| EAN/UPC | 0882658741715 | |||
| Description | ||||
|
The Broadcom NetXtreme II 5709 Gigabit Server Adapter is able to simultaneously perform accelerated networking and storage networking on standard Ethernet. The NetXtreme II is a family of Converged Network Interface Controllers (C-NICs) with superior design. These devices also support teaming and failover to improve network application performance and provide server redundancy.
|
||||
| Основни характеристики | ||||
| Описание на продукта | Broadcom NetXtreme II 5709 – network adapter – PCIe x4 – Gigabit Ethernet x 4 | |||
| Вид устройство | Network adapter | |||
| Form Factor | Plug-in card – low profile | |||
| Interface (Bus) Type | PCI Express x4 | |||
| Ports | Gigabit Ethernet x 4 | |||
| Dimensions (WxDxH) | 14.7 cm x 6.4 cm | |||
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T | |||
| Data Link Protocol | 10Mb LAN, 100Mb LAN, GigE | |||
| Data Transfer Rate | 1 Gbps | |||
| Network / Transport Protocol | TCP/IP, IPX/SPX, NetBEUI/NetBIOS, IP/IPX, iSCSI | |||
| Processor | 1 x Broadcom BCM5709C | |||
| Compliant Standards | IEEE 802.2, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3p | |||
| System Requirements | Microsoft Windows Server 2003, Red Hat Enterprise Linux 4, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008 | |||
| Designed For | UCS C220 M3 High-Density Rack-Mount Server Small Form Factor, C240 M3 High-Density Rack-Mount Server Small Form Factor | |||
| Разширено описание и характеристики | ||||
| General | ||||
| Вид устройство | Network adapter | |||
| Form Factor | Plug-in card – low profile | |||
| Interface (Bus) Type | PCI Express x4 | |||
| Networking | ||||
| Ports | Gigabit Ethernet x 4 | |||
| Connectivity Technology | Wired | |||
| Cabling Type | Ethernet 10Base-T, Ethernet 100Base-TX, Ethernet 1000Base-T | |||
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet | |||
| Data Transfer Rate | 1 Gbps | |||
| Network / Transport Protocol | TCP/IP, IPX/SPX, NetBEUI/NetBIOS, IP/IPX, iSCSI | |||
| Features | Auto-negotiation, load balancing, wake on LAN (WOL), IPv6 support, Jumbo Frames support | |||
| Compliant Standards | IEEE 802.2, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3p | |||
| Processor / Memory | ||||
| Processor | 1 x Broadcom BCM5709C | |||
| Expansion / Connectivity | ||||
| Interfaces | 4 x 1000Base-T – RJ-45 | |||
| Compatible Slots | 1 x PCI Express x4 – low-profile | |||
| Miscellaneous | ||||
| Compliant Standards | ACPI 2.0 | |||
| Software / System Requirements | ||||
| OS Required | Microsoft Windows Server 2003, Red Hat Enterprise Linux 4, SuSE Linux Enterprise Server 10, Red Hat Enterprise Linux 5, Microsoft Windows Server 2008 | |||
| Dimensions & Weight | ||||
| Depth | 14.7 cm | |||
| Height | 6.4 cm | |||
| Environmental Parameters | ||||
| Min Operating Temperature | 0 °C | |||
| Max Operating Temperature | 55 °C | |||
| Compatibility Information | ||||
| Designed For | Cisco UCS C220 M3 High-Density Rack-Mount Server Small Form Factor, C240 M3 High-Density Rack-Mount Server Small Form Factor | |||
| Техническото описание е възможно да не съвсем пълно или точно. Ако имате въпроси – пишете ни. | ||||
