N5648-B-36Q Cisco Nexus 5648Q chassis 36 x 40GE Ports/FCoE Bundle 4PSU ( 4x NXA-PAC-1100W ) 3 FANs ( 3x N5K-C5648-FAN ) (includes 1 GEM – N5600-M12Q ) N5K-C5648Q Употребяван

Name: N5648-B-36Q Cisco Nexus 5648Q chassis 36 x 40GE Ports/FCoE Bundle 4PSU ( 4x NXA-PAC-1100W ) 3 FANs ( 3x N5K-C5648-FAN ) (includes 1 GEM - N5600-M12Q ) N5K-C5648Q Употребяван
SKU: N5648-B-36Q
Price: 6863 BGN
Availability: InStock

CS-CODEC-PRO-K9 CS-CODEC-PRO+ Cisco Spark Codec Plus Video Conferencing Device Wi-Fi 802.11a/b/g/n/ac 2.4 GHz and 5 GHz for LAN 2x2 multiple input and multiple output (MIMO) Bluetooth 4.0 LE Нов Отворена КутияCP-9971-C-CAM-K9 Cisco Unified IP Endpoint 9971 Charcoal Standard Handset with CP-CAM-C Нов Отворена Кутия

6863 лв.

Състояние: Употребяван

4 in stock

Description

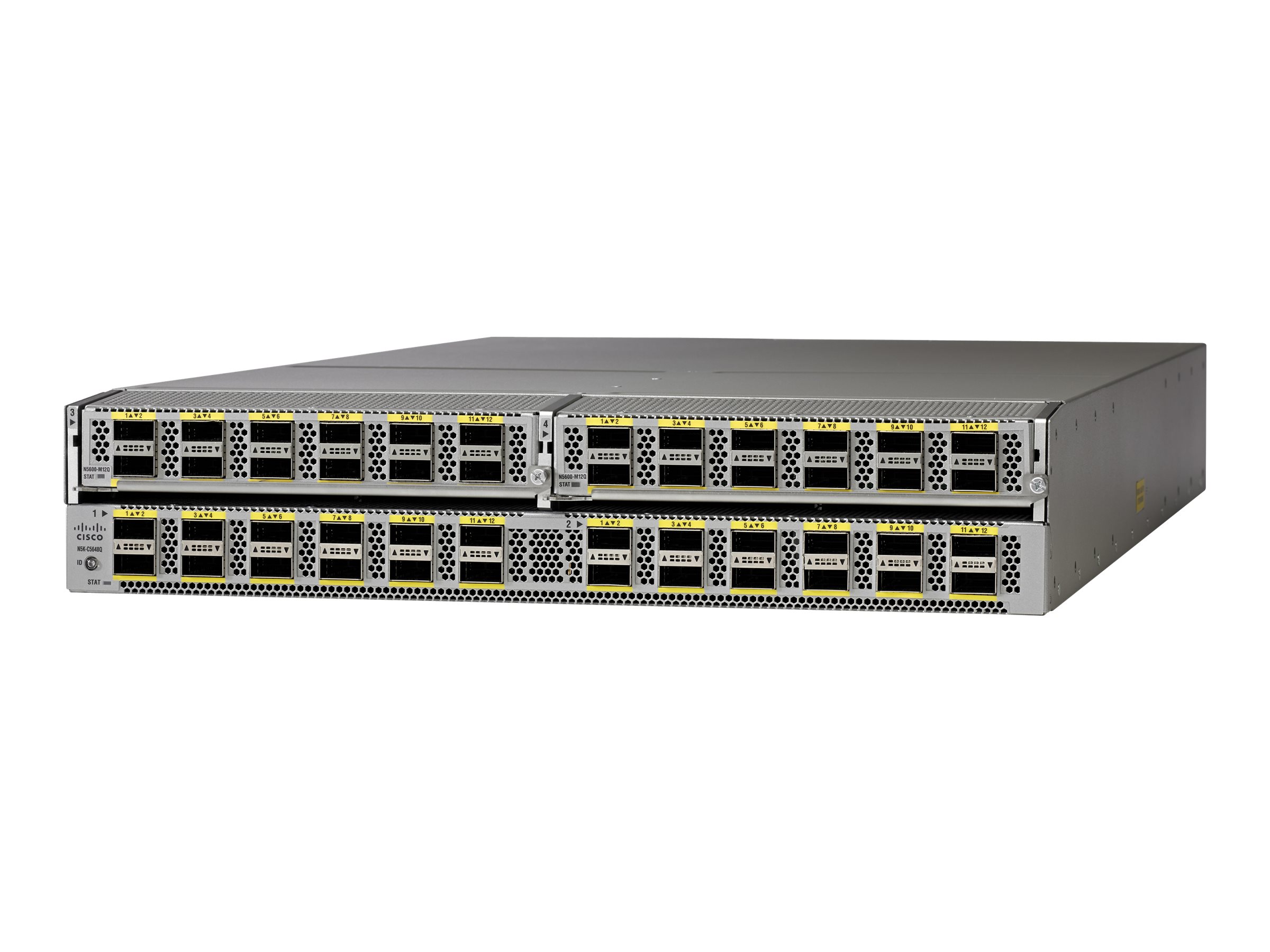

	Cisco Nexus 5648Q – Switch – L3
	Managed – 36 x 40 Gigabit Ethernet / FCoE QSFP+ – rack-mountable – with Nexus 5624Q/5648Q Chassis Module 12Q 40GE Ethernet/FCoE
	Group	Network Equipment
	Производител	Cisco
	Код на производителя	N5648-B-36Q


	Description
	The Cisco Nexus 5648Q with two expansion slots offers support for an additional twenty-four 40 Gigabit Ethernet ports using a hot-swappable generic expansion module (GEM). The Cisco Nexus 5648Q offers three fan modules for 2+1 redundancy and four 1+1 redundant power supplies, and supports both front-to-rear and reversible airflow options for flexible mounting. Using Cisco’s fabric extender (FEX) technology and cost-effective optics that allow the use of existing 10 Gigabit Ethernet fiber (a pair of multimode fiber strands), the Cisco Nexus 5648Q offers an optimal form factor for organizations upgrading their infrastructure from 10 Gbps to 40 Gbps. Please see the Cisco 40 Gigabit Modules QSFP data sheet for more details.

	Основни характеристики
	Описание на продукта	Cisco Nexus 5648Q – switch – 36 ports – Managed – rack-mountable – with Nexus 5624Q/5648Q Chassis Module 12Q 40GE Ethernet/FCoE
	Вид устройство	Switch – 36 ports – L3 – Managed – with Nexus 5624Q/5648Q Chassis Module 12Q 40GE Ethernet/FCoE
	Размер за монтиране	Rack-mountable 2U
	Subtype	40 Gigabit Ethernet
	Ports	36 x 40 Gigabit Ethernet / FCoE QSFP+
	Performance	Bandwidth: 3.84 Tbps
	Capacity	ARP entries: 256000 ¦ Virtual interfaces (VLANs): 4096 ¦ ACL entries: 4000 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Host table entries (IPv4): 32000 ¦ Host table entries (IPv6): 8000 ¦ Multicast entries (IPv4): 8000 ¦ IGMP snooping entries: 8000 ¦ Virtual Routing and Forwarding (VRF) entries: 4000 ¦ Equal-Cost Multipathing (ECMP) ways: 64
	MAC Address Table Size	256K entries
	Jumbo Frame Support	9216 bytes
	Routing Protocol	BGP-4, IS-IS, RIP-2, BGP, EIGRP, IGMPv2, HSRP, VRRP, OSPFv2, IGMPv3, EIGRP for IPv6, OSPF for IPv6, MSDP, ECMP, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), BGP for IPv6
	Remote Management Protocol	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
	Features	DHCP support, VPN support, ARP support, VLAN support, Syslog support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), STP Root Guard, Unicast Reverse Path Forwarding (URPF), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Deficit Weighted Round Robin (DWRR), DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Per-VLAN Rapid Spanning Tree (PVRST), Data Center Bridging (DCB), Hot Standby Router Protocol (HSRP) support, Management Information Base (MIB), Multicast VLAN Registration (MVR), Virtual Routing and Forwarding (VRF), redundant hot swappable fans, static routing, Transparent (N_Port ID Virtualization – NPIV) mode support, Registered State Change Notification (RSCN) support, Call Home function support, FCoE forwarding, STP PortFast, Class of Service (CoS), tagged VLAN, Multicast Source Discovery Protocol (MSDP), Virtual PortChannel (vPC) technology, 3 fans, FCoE support, RDMA over Converged Ethernet (RoCE), In-Service Software Upgrade (ISSU)
	Compliant Standards	IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz
	Power	AC 120/230 V (50/60 Hz)
	Power Redundancy	Yes
	Dimensions (WxDxH)	43.9 cm x 76.2 cm x 8.9 cm

	Разширено описание и характеристики
		General
	Вид устройство	Switch – 36 ports – L3 – Managed – with Nexus 5624Q/5648Q Chassis Module 12Q 40GE Ethernet/FCoE
	Размер за монтиране	Rack-mountable 2U
	Subtype	40 Gigabit Ethernet
	Ports	36 x 40 Gigabit Ethernet / FCoE QSFP+
	Performance	Bandwidth: 3.84 Tbps
	Capacity	ARP entries: 256000 ¦ Virtual interfaces (VLANs): 4096 ¦ ACL entries: 4000 ¦ Multiple Spanning Tree Protocol instances: 64 ¦ Host table entries (IPv4): 32000 ¦ Host table entries (IPv6): 8000 ¦ Multicast entries (IPv4): 8000 ¦ IGMP snooping entries: 8000 ¦ Virtual Routing and Forwarding (VRF) entries: 4000 ¦ Equal-Cost Multipathing (ECMP) ways: 64
	MAC Address Table Size	256K entries
	Jumbo Frame Support	9216 bytes
	Routing Protocol	BGP-4, IS-IS, RIP-2, BGP, EIGRP, IGMPv2, HSRP, VRRP, OSPFv2, IGMPv3, EIGRP for IPv6, OSPF for IPv6, MSDP, ECMP, policy-based routing (PBR), Bidirectional Forwarding Detection (BFD), BGP for IPv6
	Remote Management Protocol	SNMP 1, SNMP 2, RMON, Telnet, SNMP 3, SSH-2, CLI
	Encryption Algorithm	AES
	Authentication Method	RADIUS, TACACS+, MS-CHAP, Secure Shell v.2 (SSH2)
	Features	DHCP support, VPN support, ARP support, VLAN support, Syslog support, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Spanning Tree Protocol (STP) support, Virtual Route Redundancy Protocol (VRRP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Equal-Cost Multipath (ECMP), Bidirectional Forwarding Detection (BFD), STP Root Guard, Unicast Reverse Path Forwarding (URPF), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Deficit Weighted Round Robin (DWRR), DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, Per-VLAN Rapid Spanning Tree (PVRST), Data Center Bridging (DCB), Hot Standby Router Protocol (HSRP) support, Management Information Base (MIB), Multicast VLAN Registration (MVR), Virtual Routing and Forwarding (VRF), redundant hot swappable fans, static routing, Transparent (N_Port ID Virtualization – NPIV) mode support, Registered State Change Notification (RSCN) support, Call Home function support, FCoE forwarding, STP PortFast, Class of Service (CoS), tagged VLAN, Multicast Source Discovery Protocol (MSDP), Virtual PortChannel (vPC) technology, 3 fans, FCoE support, RDMA over Converged Ethernet (RoCE), In-Service Software Upgrade (ISSU)
	Compliant Standards	IEEE 802.3, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1Qbb, IEEE 802.1Qaz
		Expansion / Connectivity
	Interfaces	36 x 40Gbit LAN QSFP+
	Installed Modules Qty (Max)	1 (installed) / 2 (max)
		Power
	Power Device	Internal power supply – hot-plug
	Installed Qty	4 (installed) / 4 (max)
	Power Redundancy	Yes
	Power Redundancy Scheme	1+1
	Power Provided	1100 Watt
	Voltage Required	AC 120/230 V (50/60 Hz)
	Features	Front-to-rear air?ow
		Miscellaneous
	Rack Mounting Kit	Included
	Compliant Standards	CISPR 22 Class A, CISPR 24, EN55024, EN55022 Class A, AS/NZS 60950-1, EMC, ICES-003 Class A, AES, FCC CFR47 Part 15, UL 60950-1 Second Edition, RoHS, GB 4943, Directive 2004/108/EC, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, Directive 2006/95/EC, VCCI Class A, CNS 13438(95) Class A, KN22 Class A, AS/NZS CISPR22:2004 Class A, EN61000-3-2, EN61000-3-3, EN 300386
		Software / System Requirements
	Software Included	Cisco NX-OS 7.1(0)N1(1a)
		Dimensions & Weight
	Width	43.9 cm
	Depth	76.2 cm
	Height	8.9 cm
		Гаранция на производителя, моля прегледайте ганранционните ни условия
	Service & Support	Limited warranty – advance parts replacement – 1 year – response time: 10 days
		Environmental Parameters
	Min Operating Temperature	0 °C
	Max Operating Temperature	40 °C
	Humidity Range Operating	5 – 95% (non-condensing)
	Min Storage Temperature	-40 °C
	Max Storage Temperature	70 °C

Техническото описание е възможно да не съвсем пълно или точно. Ако имате въпроси – пишете ни.

Additional information

SKU	N5648-B-36Q
Състояние на продукта	Продуктът е употребяван, възможно е да има леки козметични забележки, които по никаъв начин не възпрепядстват нормалната му функция. Устройствата винаги се почивстват от прах, вентилаторите се сменят, ако е нужно. Всяко устройство преминава тест при сертифициран специалист. Високото качество е наша грижа и задължение.
Гаранция	3 Години. Вижте повече на страницата с гаранционните ни условия.
Състояние	Употребяван
