Description
|
|
||||

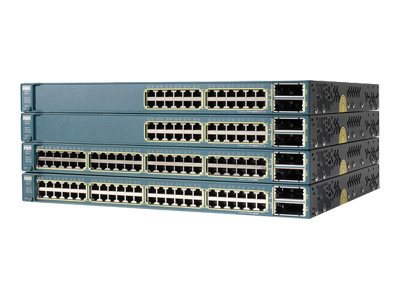

| Cisco Catalyst 3560E-48TD-S – Switch |
|
|||
| L3 – Managed – 48 x 10/100/1000 + 2 x X2 – rack-mountable | ||||
| Group | Network Equipment | |||
| Производител | Cisco | |||
| Код на производителя | WS-C3560E-48TD-S | |||
| EAN/UPC | 0882658132612 | |||
| Description | ||||
|
Cisco Catalyst 3560-E series switch is an enterprise-class standalone wiring closet switch that facilitates the deployment of secure converged applications while maximizing investment protection for evolving network and application requirements. The Cisco Catalyst 3560-E enhances worker productivity by enabling applications such as IP telephony, wireless, and video.
|
||||
| Основни характеристики | ||||
| Описание на продукта | Cisco Catalyst 3560E-48TD-S – switch – 48 ports – Managed – rack-mountable | |||
| Вид устройство | Switch – 48 ports – L3 – Managed | |||
| Размер за монтиране | Rack-mountable 1U | |||
| Subtype | Gigabit Ethernet | |||
| Ports | 48 x 10/100/1000 + 2 x X2 | |||
| MAC Address Table Size | 12K entries | |||
| Routing Protocol | RIP-1, RIP-2, static IP routing, RIPng | |||
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2 | |||
| Features | Full duplex capability, Layer 3 switching, Layer 2 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, trunking, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, manageable, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR) | |||
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s | |||
| Power | AC 120/230 V (50/60 Hz) | |||
| Dimensions (WxDxH) | 44.5 cm x 46 cm x 4.5 cm | |||
| Weight | 8.6 kg | |||
| Разширено описание и характеристики | ||||
| General | ||||
| Вид устройство | Switch – 48 ports – L3 – Managed | |||
| Размер за монтиране | Rack-mountable 1U | |||
| Subtype | Gigabit Ethernet | |||
| Ports | 48 x 10/100/1000 + 2 x X2 | |||
| MAC Address Table Size | 12K entries | |||
| Routing Protocol | RIP-1, RIP-2, static IP routing, RIPng | |||
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, SSH-2 | |||
| Authentication Method | Kerberos, RADIUS, TACACS+, Secure Shell v.2 (SSH2) | |||
| Features | Full duplex capability, Layer 3 switching, Layer 2 switching, auto-sensing per device, IP-routing, DHCP support, auto-negotiation, trunking, MPLS support, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, traffic shaping, manageable, IPv6 support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Time Domain Reflectometry (TDR) | |||
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s | |||
| RAM | 128 MB | |||
| Flash Memory | 64 MB Flash | |||
| Status Indicators | Port transmission speed, port duplex mode, bandwidth utilization %, power, link OK, system, link/activity | |||
| Expansion / Connectivity | ||||
| Interfaces | 48 x 1000Base-T RJ-45 ¦ 1 x console RJ-45 management ¦ 1 x 100Base-TX RJ-45 management ¦ 2 x X2 | |||
| Power | ||||
| Power Device | Internal power supply | |||
| Voltage Required | AC 120/230 V (50/60 Hz) | |||
| Power Consumption Operational | 151 Watt | |||
| Features | Redundant Power System (RPS) connector | |||
| Miscellaneous | ||||
| MTBF | 166,907 hours | |||
| Compliant Standards | FCC Class A certified, TUV GS, BSMI CNS 13438 Class A, CISPR 24, cUL, EN 60950, EN55022, NOM, VCCI Class A ITE, IEC 60950, EN55024, UL 60950 Third Edition, CISPR 22, CSA 22.2 No. 60950, CB, AS/NZ 3548 Class A, FCC Part 15, MIC, RoHS | |||
| Software / System Requirements | ||||
| Software Included | Cisco IOS IP Base | |||
| Dimensions & Weight | ||||
| Width | 44.5 cm | |||
| Depth | 46 cm | |||
| Height | 4.5 cm | |||
| Weight | 8.6 kg | |||
| Гаранция на производителя, моля прегледайте ганранционните ни условия | ||||
| Service & Support | Limited warranty – 90 days | |||
| Environmental Parameters | ||||
| Min Operating Temperature | 0 °C | |||
| Max Operating Temperature | 45 °C | |||
| Humidity Range Operating | 0 – 95% | |||
| Техническото описание е възможно да не съвсем пълно или точно. Ако имате въпроси – пишете ни. | ||||
