Description

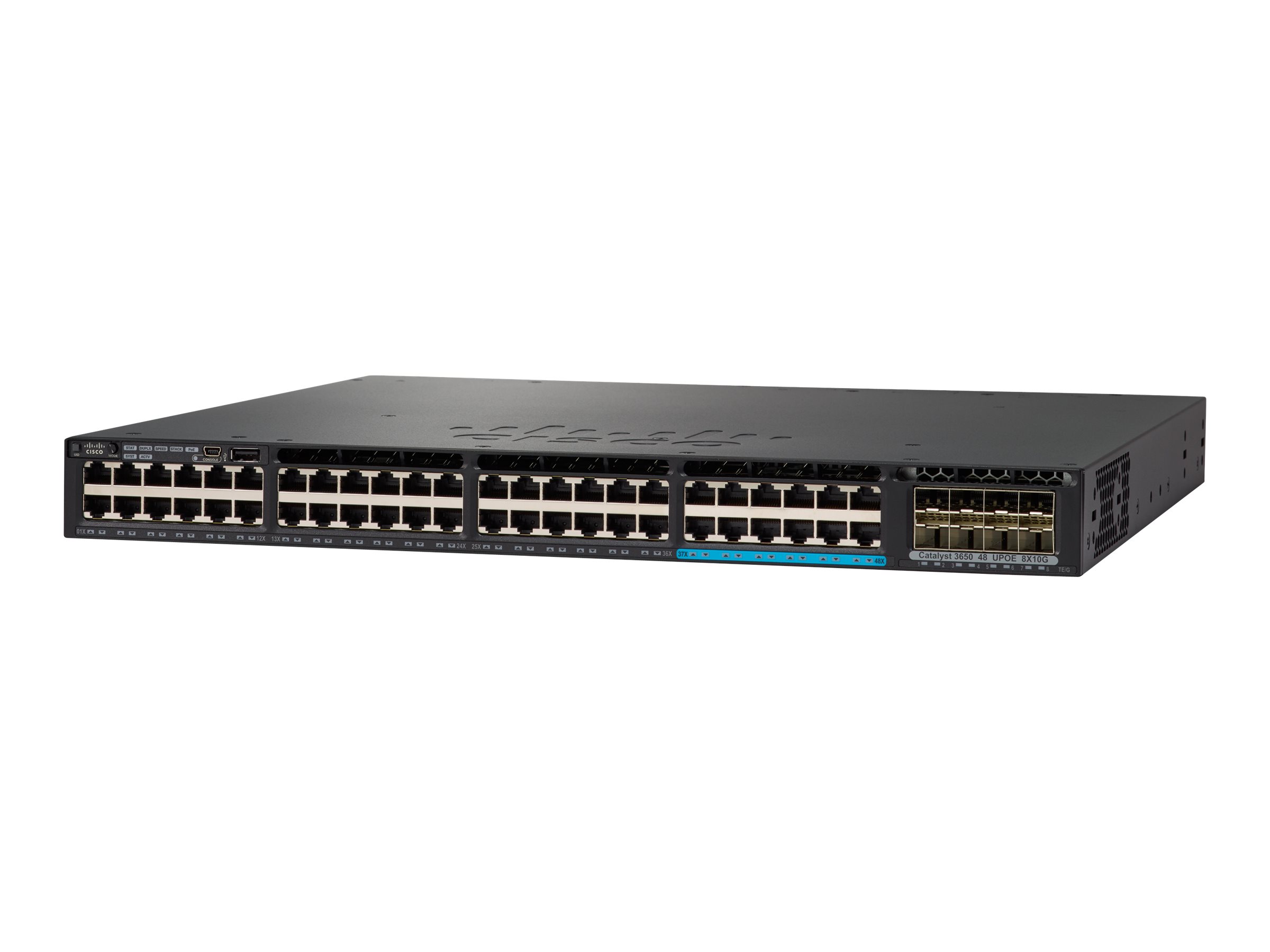

	Cisco Catalyst 3650-12X48UQ-L
	Switch – L3 – Managed – 36 x 10/100/1000 (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) + 4 x 10 Gigabit SFP+ (uplink) – desktop – rack-mountable – UPOE (660 W)
	Group	Network Equipment
	Производител	Cisco
	Код на производителя	WS-C3650-12X48UQ-L
	EAN/UPC	0882658865398

	Description
	The Cisco Catalyst 3650 Series is the next generation of enterprise-class standalone and stackable access-layer switches that provide the foundation for full convergence between wired and wireless on a single platform. The 3650 Series is built on the advanced Cisco StackWise-160, and takes advantage of the Cisco Unified Access Data Plane (UADP) application-specific integrated circuit (ASIC). This switch can enable uniform wired-wireless policy enforcement, application visibility, flexibility, application optimization, and superior resiliency. The 3650 Series switches support full IEEE 802.3at Power over Ethernet Plus (PoE+), Cisco Universal Power over Ethernet (Cisco UPOE) on the Cisco Catalyst 3650 Series multigigabit switches, and offer modular and field-replaceable redundant fans and power supplies.

	Основни характеристики
	Описание на продукта	Cisco Catalyst 3650-12X48UQ-L – switch – 48 ports – Managed – rack-mountable
	Вид устройство	Switch – 48 ports – L3 – Managed – stackable
	Размер за монтиране	Rack-mountable 1U
	Subtype	Gigabit Ethernet
	Ports	36 x 10/100/1000 (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) + 4 x 10 Gigabit SFP+ (uplink)
	Power Over Ethernet (PoE)	UPOE
	PoE Budget	660 W
	Performance	Switching capacity: 272 Gbps ¦ Forwarding performance: 202.38 Mpps ¦ Stacking bandwidth: 160 Gbps
	Capacity	IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000 ¦ IPv4 routes: 24000
	MAC Address Table Size	32000 entries
	Jumbo Frame Support	9198 bytes
	Routing Protocol	BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
	Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
	Features	Full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support
	Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
	Power	AC 120/230 V (50/60 Hz)
	Power Redundancy	Optional
	Dimensions (WxDxH)	44.5 cm x 48.6 cm x 4.4 cm
	Weight	7.58 kg

	Разширено описание и характеристики
		General
	Вид устройство	Switch – 48 ports – L3 – Managed – stackable
	Размер за монтиране	Desktop, rack-mountable 1U
	Subtype	Gigabit Ethernet
	Ports	36 x 10/100/1000 (UPOE) + 12 x 100/1000/2.5G/5G/10G (UPOE) + 4 x 10 Gigabit SFP+ (uplink)
	Power Over Ethernet (PoE)	UPOE
	PoE Budget	660 W
	Performance	Switching capacity: 272 Gbps ¦ Forwarding performance: 202.38 Mpps ¦ Stacking bandwidth: 160 Gbps
	Capacity	IPv4 routes: 24000 ¦ NetFlow entries: 24000 ¦ Virtual interfaces (VLANs): 4094 ¦ Switched virtual interfaces (SVIs): 1000 ¦ IPv4 routes: 24000
	MAC Address Table Size	32000 entries
	Jumbo Frame Support	9198 bytes
	Routing Protocol	BGP-4, IS-IS, RIP-1, RIP-2, PIM-SM, static IP routing, PIM-DM, EIGRP for IPv6, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
	Remote Management Protocol	SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, SSH, CLI
	Authentication Method	Kerberos, Secure Shell (SSH), RADIUS, TACACS+
	Features	Full duplex capability, Layer 2 switching, DHCP support, auto-negotiation, ARP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, IPv6 support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), RADIUS support, Virtual Route Forwarding-Lite (VRF-Lite), MLD snooping, Dynamic ARP Inspection (DAI), Cisco StackWise Technology, Unicast Reverse Path Forwarding (URPF), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), LLDP support, Link Aggregation Control Protocol (LACP), MAC Address Notification, Remote Switch Port Analyzer (RSPAN), Hot Standby Router Protocol (HSRP) support, Energy Efficient Ethernet, Strict Priority Queuing (SPQ), Class of Service (CoS), Flexible NetFlow (FNF), DiffServ Code Point (DSCP) support
	Compliant Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at
	RAM	4 GB
	Flash Memory	4 GB
	Status Indicators	Port transmission speed, port duplex mode, system, active, status, PoE
		Expansion / Connectivity
	Interfaces	36 x 1000Base-T RJ-45 UPOE – 60 W ¦ 1 x USB Type A ¦ 1 x serial (console) RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 management ¦ 1 x management (mini-USB) Type B management ¦ 12 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE – 60 W ¦ 4 x 10GBase-X SFP+ uplink
	Expansion Slots	1 (total) / 1 (free) x Stacking Module
		Power
	Power Device	Internal power supply – hot-plug
	Installed Qty	1 (installed) / 2 (max)
	Power Redundancy	Optional
	Power Redundancy Scheme	1+1 (with optional power supply)
	Power Provided	1100 Watt
	Voltage Required	AC 120/230 V (50/60 Hz)
		Miscellaneous
	Rack Mounting Kit	Included
	MTBF	203,130 hours
	Compliant Standards	CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, ICES-003 Class A, RoHS, UL 60950-1 Second Edition, KCC, FCC Part 15 A, ISO 7779, CSA C22.2 No. 60950-1 Second Edition, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, EN 55022 Class A
		Software / System Requirements
	Software Included	Cisco IOS LAN Base
		Dimensions & Weight
	Width	44.5 cm
	Depth	48.6 cm
	Height	4.4 cm
	Weight	7.58 kg
		Гаранция на производителя, моля прегледайте ганранционните ни условия
	Service & Support	Limited warranty – replacement – lifetime – response time: next business day ¦ Technical support – phone consulting – 90 days
		Environmental Parameters
	Min Operating Temperature	-5 °C
	Max Operating Temperature	45 °C
	Humidity Range Operating	5 – 96% (non-condensing)
	Min Storage Temperature	-40 °C
	Max Storage Temperature	70 °C

Техническото описание е възможно да не съвсем пълно или точно. Ако имате въпроси – пишете ни.

Additional information

SKU	WS-C3650-12X48UQ-L
Състояние на продукта	Продуктът е употребяван, възможно е да има леки козметични забележки, които по никаъв начин не възпрепядстват нормалната му функция. Устройствата винаги се почивстват от прах, вентилаторите се сменят, ако е нужно. Всяко устройство преминава тест при сертифициран специалист. Високото качество е наша грижа и задължение.
Гаранция	3 Години. Вижте повече на страницата с гаранционните ни условия.
Състояние	Употребяван
