Description
|
|
||||

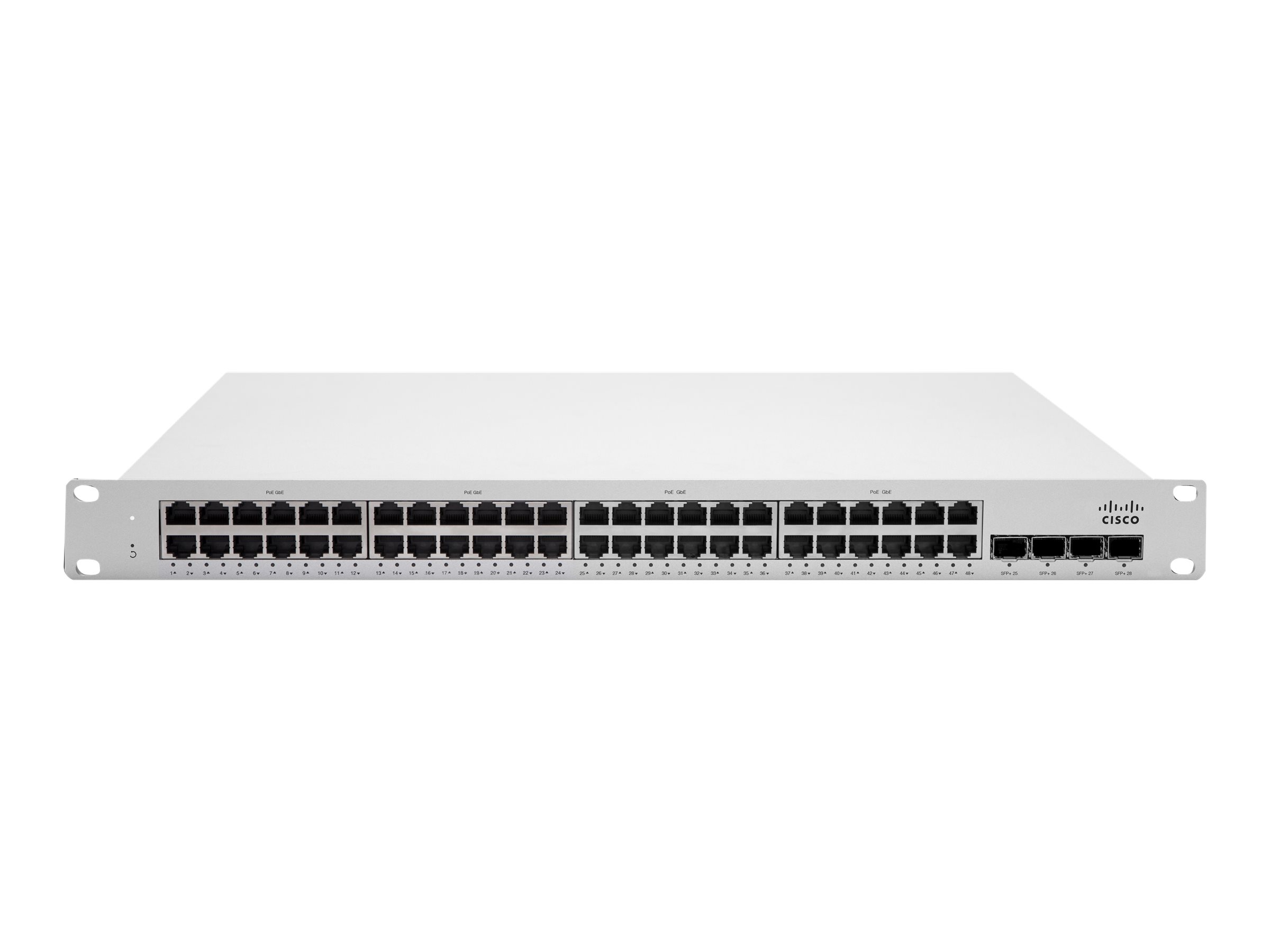

| Cisco Meraki Cloud Managed MS225-48FP |
|
|||
| Switch – Managed – 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) – rack-mountable – PoE+ (740 W) | ||||
| Group | Network Equipment | |||
| Производител | Cisco | |||
| Код на производителя | MS225-48FP-HW | |||
| Description | ||||
|
The Cisco Meraki MS225-24 is a 24-port cloud-managed stackable L2 enterprise-class access switch with four SFP+ uplinks and support for Cisco’s Redundant Power System (RPS) for mission critical environments. The MS225 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The MS225 family is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.
|
||||
| Основни характеристики | ||||
| Описание на продукта | Cisco Meraki Cloud Managed MS225-48FP – switch – 48 ports – Managed – rack-mountable | |||
| Вид устройство | Switch – 48 ports – Managed – stackable | |||
| Размер за монтиране | Rack-mountable 1U | |||
| Subtype | Gigabit Ethernet | |||
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) | |||
| Power Over Ethernet (PoE) | PoE+ | |||
| PoE Budget | 740 W | |||
| Remote Management Protocol | SNMP | |||
| Features | Flow control, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Jumbo Frames support, SMS alert, IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), static routing, crossover detection, cloud managed, Bridge protocol data unit (BPDU), Role-Based Access Control (RBAC), Cisco Discovery Protocol, Root Guard | |||
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at | |||
| Power | AC 120/230 V (47 – 63 Hz) | |||
| Power Redundancy | Optional | |||
| Dimensions (WxDxH) | 48.46 cm x 34 cm x 4.38 cm | |||
| Weight | 4.37 kg | |||
| Разширено описание и характеристики | ||||
| General | ||||
| Вид устройство | Switch – 48 ports – Managed – stackable | |||
| Размер за монтиране | Rack-mountable 1U | |||
| Subtype | Gigabit Ethernet | |||
| Ports | 48 x 10/100/1000 (PoE+) + 4 x 10 Gigabit SFP+ (uplink) | |||
| Power Over Ethernet (PoE) | PoE+ | |||
| PoE Budget | 740 W | |||
| Max Units In A Stack | 8 | |||
| Remote Management Protocol | SNMP | |||
| Authentication Method | RADIUS | |||
| Features | Flow control, DHCP support, auto-negotiation, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), Jumbo Frames support, SMS alert, IPv4 support, LLDP support, DHCP relay, Link Aggregation Control Protocol (LACP), static routing, crossover detection, cloud managed, Bridge protocol data unit (BPDU), Role-Based Access Control (RBAC), Cisco Discovery Protocol, Root Guard | |||
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3af, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3at | |||
| Expansion / Connectivity | ||||
| Interfaces | 48 x 1000Base-T RJ-45 PoE+ ¦ 4 x 10Gbit LAN SFP+ uplink | |||
| Power | ||||
| Power Device | Internal power supply | |||
| Power Redundancy | Optional | |||
| Voltage Required | AC 120/230 V (47 – 63 Hz) | |||
| Features | Redundant Power System (RPS) connector | |||
| Miscellaneous | ||||
| MTBF | 320,555 hours | |||
| Compliant Standards | CSA, IC, FCC, RoHS, RCM | |||
| Dimensions & Weight | ||||
| Width | 48.46 cm | |||
| Depth | 34 cm | |||
| Height | 4.38 cm | |||
| Weight | 4.37 kg | |||
| Гаранция на производителя, моля прегледайте ганранционните ни условия | ||||
| Service & Support | Limited warranty – lifetime | |||
| Environmental Parameters | ||||
| Min Operating Temperature | 0 °C | |||
| Max Operating Temperature | 40 °C | |||
| Humidity Range Operating | 5 – 95% (non-condensing) | |||
| Техническото описание е възможно да не съвсем пълно или точно. Ако имате въпроси – пишете ни. | ||||
