Description
|
|
||||

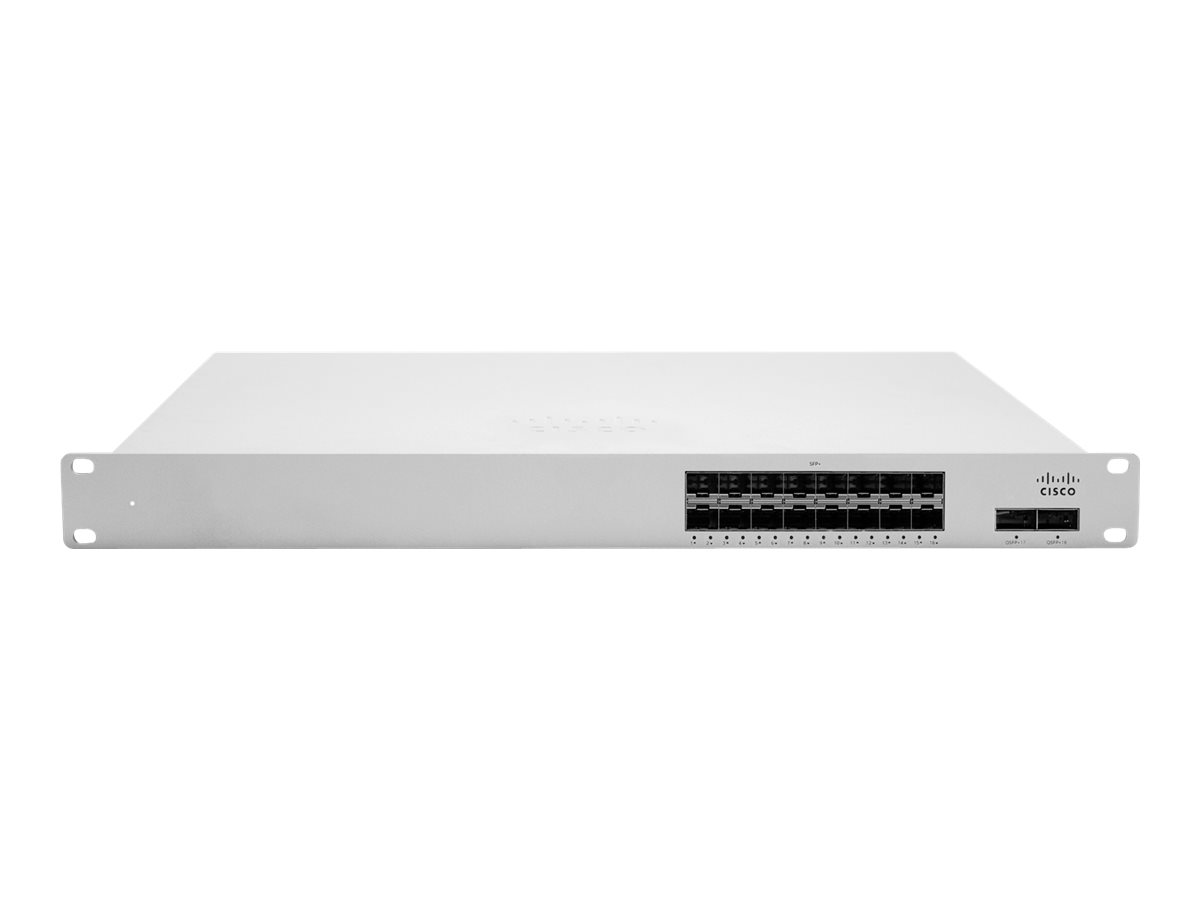

| Cisco Meraki Cloud Managed Ethernet Aggregation Switch MS425-16 |
|
|||
| Switch – Managed – 16 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ (uplink) – front to back airflow – rack-mountable | ||||
| Group | Network Equipment | |||
| Производител | Cisco | |||
| Код на производителя | MS425-16-HW | |||
| Description | ||||
|
The Cisco Meraki MS425-16 is a 16-port 10GbE cloud-managed stackable L3 enterprise-class aggregation switch with two QSFP+ 40G uplinks and support for redundant power supplies for mission critical environments. The MS425 family includes integrated client and layer 7 application visibility, remote troubleshooting tools like live packet capture and cable test. The MS425 family is 100% cloud-managed via the intuitive, browser-based Meraki dashboard, and includes a rich, out-of-the-box feature set without additional cost and complexity.
|
||||
| Основни характеристики | ||||
| Описание на продукта | Cisco Meraki Cloud Managed Ethernet Aggregation Switch MS425-16 – switch – 16 ports – Managed – rack-mountable | |||
| Вид устройство | Switch – 16 ports – Managed – stackable | |||
| Размер за монтиране | Front to back airflow rack-mountable 1U | |||
| Subtype | 10 Gigabit Ethernet | |||
| Ports | 16 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ (uplink) | |||
| Performance | Switching capacity: 480 Gbps | |||
| Capacity | Tagged VLANs: 4095 | |||
| Routing Protocol | OSPFv2, static IP routing | |||
| Features | Layer 3 switching, DHCP support, VLAN support, IGMP snooping, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), SMS alert, LLDP support, Link Aggregation Control Protocol (LACP), Zero Touch Auto Provisioning, tagged VLAN, cloud managed | |||
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ad, IEEE 802.1ab (LLDP) | |||
| Power | AC 120/230 V (47 – 63 Hz) | |||
| Dimensions (WxDxH) | 48.5 cm x 48.7 cm x 4.5 cm | |||
| Разширено описание и характеристики | ||||
| General | ||||
| Вид устройство | Switch – 16 ports – Managed – stackable | |||
| Размер за монтиране | Front to back airflow rack-mountable 1U | |||
| Subtype | 10 Gigabit Ethernet | |||
| Ports | 16 x 10 Gigabit SFP+ + 2 x 40 Gigabit QSFP+ (uplink) | |||
| Performance | Switching capacity: 480 Gbps | |||
| Capacity | Tagged VLANs: 4095 | |||
| Routing Protocol | OSPFv2, static IP routing | |||
| Authentication Method | RADIUS | |||
| Features | Layer 3 switching, DHCP support, VLAN support, IGMP snooping, port mirroring, E-mail alert, Broadcast Storm Control, firmware upgradable, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Quality of Service (QoS), SMS alert, LLDP support, Link Aggregation Control Protocol (LACP), Zero Touch Auto Provisioning, tagged VLAN, cloud managed | |||
| Compliant Standards | IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ad, IEEE 802.1ab (LLDP) | |||
| Expansion / Connectivity | ||||
| Interfaces | 16 x 1000Base-X SFP+ ¦ 2 x 40Gbit LAN QSFP+ uplink/stacking ¦ 1 x management (Gigabit LAN) RJ-45 | |||
| Power | ||||
| Power Device | Internal power supply | |||
| Voltage Required | AC 120/230 V (47 – 63 Hz) | |||
| Miscellaneous | ||||
| MTBF | 426,634 hours | |||
| Compliant Standards | CSA, C-Tick, IC, RoHS | |||
| Dimensions & Weight | ||||
| Width | 48.5 cm | |||
| Depth | 48.7 cm | |||
| Height | 4.5 cm | |||
| Гаранция на производителя, моля прегледайте ганранционните ни условия | ||||
| Service & Support | Limited warranty – advance hardware replacement – lifetime – response time: next day | |||
| Environmental Parameters | ||||
| Min Operating Temperature | 0 °C | |||
| Max Operating Temperature | 40 °C | |||
| Техническото описание е възможно да не съвсем пълно или точно. Ако имате въпроси – пишете ни. | ||||
