Description
|
|
||||

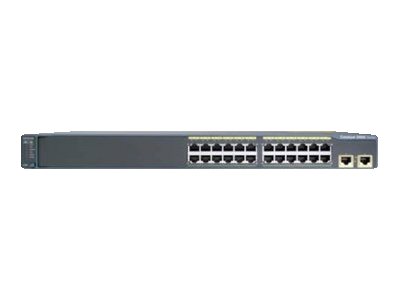

| Cisco Catalyst 2960-24TT – Switch |
|
|||
| Managed – 24 x 10/100 + 2 x 10/100/1000 – rack-mountable | ||||
| Group | Network Equipment | |||
| Производител | Cisco | |||
| Код на производителя | WS-C2960-24TT-L | |||
| EAN/UPC | 0882658044113 | |||
| Description | ||||
|
Cisco Catalyst 2960 Series Intelligent Ethernet Switches are a new family of fixed-configuration standalone devices that provide desktop Fast Ethernet and Gigabit Ethernet connectivity, enabling enhanced LAN services for entry-level enterprise, mid-market, and branch office networks. The Catalyst 2960 Series offers integrated security, including network admission control (NAC), advanced quality of service (QoS), and resiliency to deliver intelligent services for the network edge.
|
||||
| Основни характеристики | ||||
| Описание на продукта | Cisco Catalyst 2960-24TT – switch – 24 ports – Managed – rack-mountable | |||
| Вид устройство | Switch – 24 ports – Managed | |||
| Размер за монтиране | Rack-mountable 1U | |||
| Subtype | Fast Ethernet | |||
| Ports | 24 x 10/100 + 2 x 10/100/1000 | |||
| Performance | Switching capacity: 32 Gbps ¦ Forwarding performance (64-byte packet size): 6.5 Mpps | |||
| MAC Address Table Size | 8K entries | |||
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH | |||
| Features | Layer 2 switching, auto-sensing per device, dynamic IP address assignment, auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN) | |||
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) | |||
| Power | AC 120/230 V (50/60 Hz) | |||
| Dimensions (WxDxH) | 44.5 cm x 23.6 cm x 4.4 cm | |||
| Weight | 3.63 kg | |||
| Разширено описание и характеристики | ||||
| General | ||||
| Вид устройство | Switch – 24 ports – Managed | |||
| Размер за монтиране | Rack-mountable 1U | |||
| Subtype | Fast Ethernet | |||
| Ports | 24 x 10/100 + 2 x 10/100/1000 | |||
| Performance | Switching capacity: 32 Gbps ¦ Forwarding performance (64-byte packet size): 6.5 Mpps | |||
| MAC Address Table Size | 8K entries | |||
| Remote Management Protocol | SNMP 1, SNMP 2, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH | |||
| Encryption Algorithm | SSL | |||
| Authentication Method | Secure Shell (SSH), RADIUS, TACACS+ | |||
| Features | Layer 2 switching, auto-sensing per device, dynamic IP address assignment, auto-negotiation, BOOTP support, ARP support, load balancing, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DiffServ support, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Access Control List (ACL) support, Quality of Service (QoS), Link Aggregation Control Protocol (LACP), Port Security, MAC Address Notification, Remote Switch Port Analyzer (RSPAN) | |||
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3ah, IEEE 802.1ab (LLDP) | |||
| RAM | 64 MB | |||
| Flash Memory | 32 MB Flash | |||
| Status Indicators | Port transmission speed, port duplex mode, power, link OK, system, link/activity | |||
| Expansion / Connectivity | ||||
| Interfaces | 24 x 100Base-TX RJ-45 ¦ 2 x 1000Base-T RJ-45 | |||
| Power | ||||
| Power Device | Internal power supply | |||
| Voltage Required | AC 120/230 V (50/60 Hz) | |||
| Power Consumption Operational | 28 Watt | |||
| Miscellaneous | ||||
| Rack Mounting Kit | Optional | |||
| MTBF | 407,707 hours | |||
| Compliant Standards | TUV GS, CISPR 22 Class A, GOST, BSMI CNS 13438 Class A, CISPR 24, NOM, VCCI Class A ITE, EN55024, CB, EMC, MIC, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, RoHS, CSA C22.2 No. 60950-1, FCC Part 15 B Class A | |||
| Software / System Requirements | ||||
| Software Included | Cisco LAN Base software | |||
| Dimensions & Weight | ||||
| Width | 44.5 cm | |||
| Depth | 23.6 cm | |||
| Height | 4.4 cm | |||
| Weight | 3.63 kg | |||
| Гаранция на производителя, моля прегледайте ганранционните ни условия | ||||
| Service & Support | Limited warranty – lifetime | |||
| Environmental Parameters | ||||
| Min Operating Temperature | -5 °C | |||
| Max Operating Temperature | 40 °C | |||
| Humidity Range Operating | 10 – 95% (non-condensing) | |||
| Min Storage Temperature | -25 °C | |||
| Max Storage Temperature | 70 °C | |||
| Humidity Range Storage | 10 – 95% (non-condensing) | |||
| Техническото описание е възможно да не съвсем пълно или точно. Ако имате въпроси – пишете ни. | ||||
