Description
|
|
||||

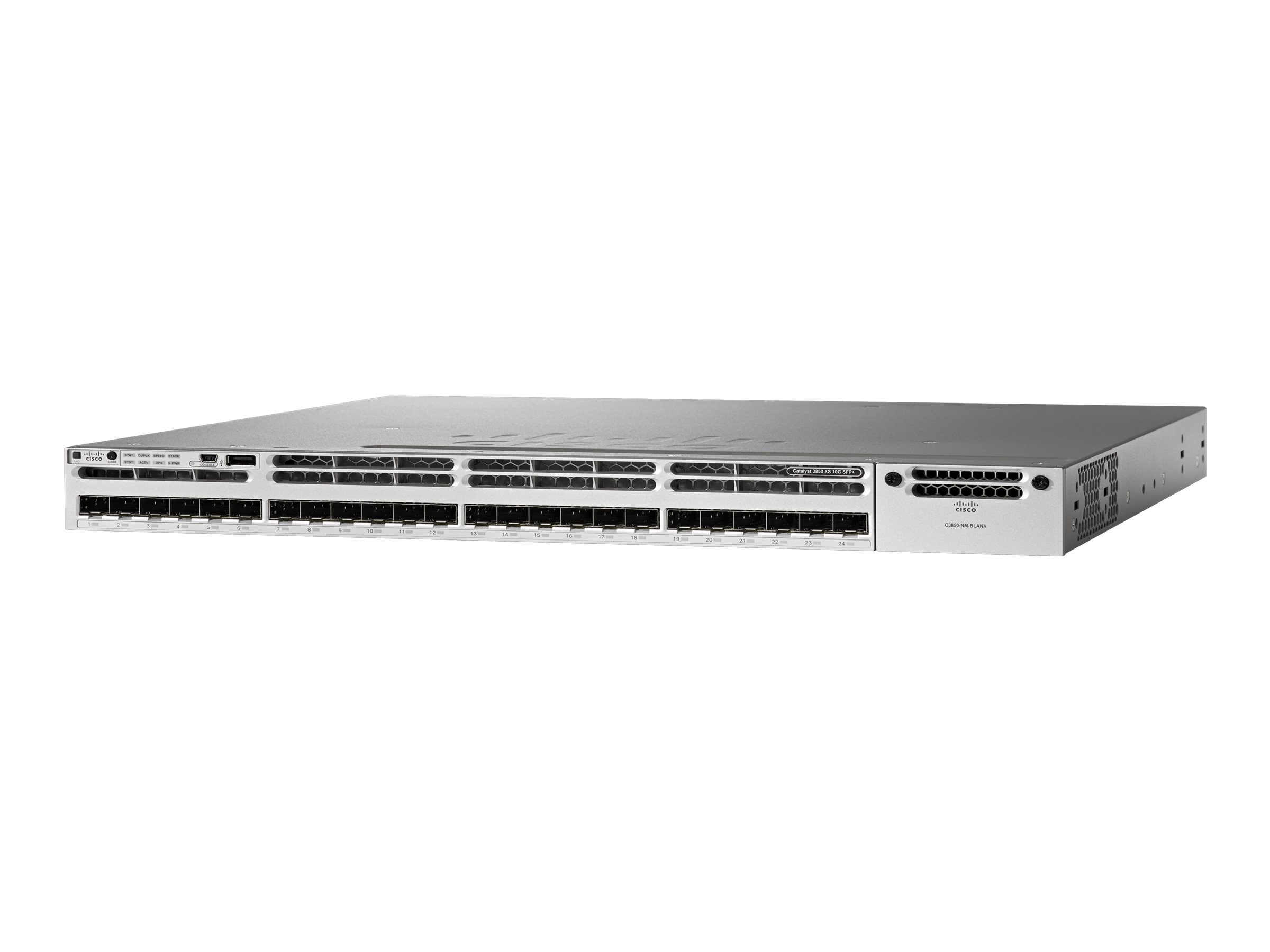

| Cisco Catalyst 3850-24XS-S – Switch |
|
|||
| L3 – Managed – 24 x 1 Gigabit / 10 Gigabit SFP+ – desktop – rack-mountable | ||||
| Group | Network Equipment | |||
| Производител | Cisco | |||
| Код на производителя | WS-C3850-24XS-S | |||
| EAN/UPC | 0882658757839 | |||
| Description | ||||
|
This is an advanced enterprise-class, stackable, access layer switch. It provides full convergence between wired and wireless networks on a single platform.
|
||||
| Основни характеристики | ||||
| Описание на продукта | Cisco Catalyst 3850-24XS-S – switch – 24 ports – Managed – rack-mountable | |||
| Вид устройство | Switch – 24 ports – L3 – Managed – stackable | |||
| Размер за монтиране | Rack-mountable 1U | |||
| Subtype | 10 Gigabit Ethernet | |||
| Ports | 24 x 1 Gigabit / 10 Gigabit SFP+ | |||
| Performance | Switching capacity: 640 Gbps ¦ Stacking bandwidth: 480 Gbps | |||
| Capacity | IPv4 routes: 24000 ¦ NetFlow entries: 48000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Virtual interfaces (VLANs): 4000 | |||
| MAC Address Table Size | 32000 entries | |||
| Jumbo Frame Support | 9198 bytes | |||
| Routing Protocol | IS-IS, RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, policy-based routing (PBR), RIPng, MLDv2, MLD | |||
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI | |||
| Features | DHCP support, ARP support, Syslog support, PIM snooping, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), SSH support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, radio resource management (RRM), ARP inspection, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Control plane protection (CoPP) | |||
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s | |||
| Power | AC 120/230 V (50 – 60 Hz) | |||
| Power Redundancy | Optional | |||
| Dimensions (WxDxH) | 44.5 cm x 45 cm x 4.45 cm | |||
| Weight | 6.1 kg | |||
| Разширено описание и характеристики | ||||
| General | ||||
| Вид устройство | Switch – 24 ports – L3 – Managed – stackable | |||
| Размер за монтиране | Desktop, rack-mountable 1U | |||
| Subtype | 10 Gigabit Ethernet | |||
| Ports | 24 x 1 Gigabit / 10 Gigabit SFP+ | |||
| Performance | Switching capacity: 640 Gbps ¦ Stacking bandwidth: 480 Gbps | |||
| Capacity | IPv4 routes: 24000 ¦ NetFlow entries: 48000 ¦ Switched virtual interfaces (SVIs): 1000 ¦ Virtual interfaces (VLANs): 4000 | |||
| MAC Address Table Size | 32000 entries | |||
| Jumbo Frame Support | 9198 bytes | |||
| Routing Protocol | IS-IS, RIP-1, RIP-2, IGMPv2, IGMP, IGMPv3, policy-based routing (PBR), RIPng, MLDv2, MLD | |||
| Remote Management Protocol | SNMP 1, RMON 1, RMON 2, Telnet, SNMP 3, SNMP 2c, TFTP, SSH, CLI | |||
| Authentication Method | Kerberos, Secure Shell (SSH), RADIUS, TACACS+ | |||
| Features | DHCP support, ARP support, Syslog support, PIM snooping, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Dynamic Trunking Protocol (DTP) support, Port Aggregation Protocol (PAgP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), SSH support, Virtual Route Forwarding-Lite (VRF-Lite), Uni-Directional Link Detection (UDLD), Rapid Per-VLAN Spanning Tree Plus (PVRST+), Shaped Round Robin (SRR), Link Aggregation Control Protocol (LACP), Remote Switch Port Analyzer (RSPAN), Energy Efficient Ethernet, Virtual Routing and Forwarding (VRF), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), 802.1x authentication, radio resource management (RRM), ARP inspection, Weighted Tail Drop (WTD), VLAN Trunking Protocol (VTP), Bridge protocol data unit (BPDU), Control plane protection (CoPP) | |||
| Compliant Standards | IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s | |||
| RAM | 4 GB | |||
| Flash Memory | 4 GB | |||
| Status Indicators | Port transmission speed, port duplex mode, power, system, active, status | |||
| Expansion / Connectivity | ||||
| Interfaces | 24 x 10GBase-X SFP+ ¦ 1 x USB Type A ¦ 1 x management (mini-USB) Type B ¦ 1 x console RJ-45 management ¦ 1 x management (Gigabit LAN) RJ-45 ¦ 2 x network stack device | |||
| Expansion Slots | 1 (total) / 1 (free) x Expansion Slot | |||
| Power | ||||
| Power Device | Internal power supply | |||
| Installed Qty | 1 (installed) / 2 (max) | |||
| Power Redundancy | Optional | |||
| Power Redundancy Scheme | 1+1 (with optional power supply) | |||
| Power Provided | 715 Watt | |||
| Voltage Required | AC 120/230 V (50 – 60 Hz) | |||
| Miscellaneous | ||||
| MTBF | 307,990 hours | |||
| Compliant Standards | CISPR 22 Class A, CISPR 24, EN 61000-3-2, NOM, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, FCC CFR47 Part 15, UL 60950-1, IEC 60950-1, EN 60950-1, UL 60950-1 Second Edition, KCC, RoHS, FCC Part 15 A, AS/NZS 3548 Class A, BSMI Class A, EN 60950-1 Second Edition, IEC 60950-1 Second Edition, VCCI Class A, KN24, KN22 Class A, AS/NZS CISPR 22, CNS 13438, EN 55022 Class A, EN 300 386, CAN/CSA-C22.2 No. 60950-1 | |||
| Software / System Requirements | ||||
| Software Included | Cisco IOS IP Base | |||
| Dimensions & Weight | ||||
| Width | 44.5 cm | |||
| Depth | 45 cm | |||
| Height | 4.45 cm | |||
| Weight | 6.1 kg | |||
| Гаранция на производителя, моля прегледайте ганранционните ни условия | ||||
| Service & Support | Limited warranty – advance parts replacement – lifetime – response time: next business day ¦ Technical support – consulting – 90 days | |||
| Environmental Parameters | ||||
| Min Operating Temperature | -5 °C | |||
| Max Operating Temperature | 45 °C | |||
| Humidity Range Operating | 10 – 95% (non-condensing) | |||
| Min Storage Temperature | -40 °C | |||
| Max Storage Temperature | 70 °C | |||
| Техническото описание е възможно да не съвсем пълно или точно. Ако имате въпроси – пишете ни. | ||||
